1MP Mono 19”

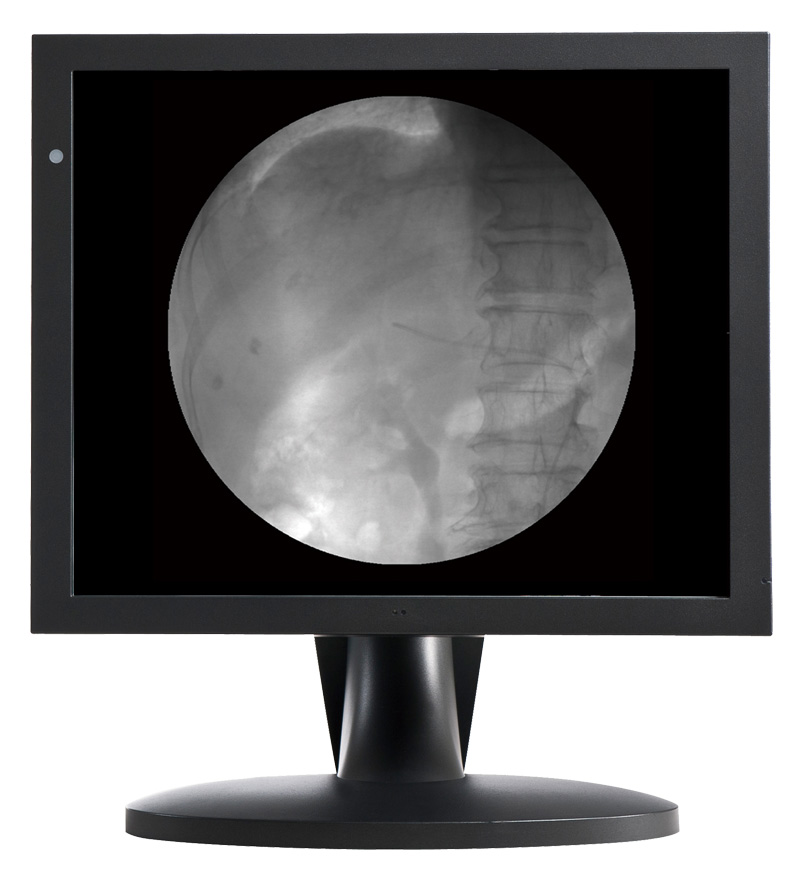

The Optik View 1MP Clinical Monochrome Display is ideally suited for quick display and review of radiology images at the time of capture. This high-definition, multi-functional model features a precise calibration compliant with DICOM Part 14 and can be easilty integrated with imaging workstations.
Commonly used for quick display and review of radiology images at time of capture. This high-definition, multi-functional model features a precise calibration compliant with DICOM Part 14 allowing use as a diagnostic and reference image review display for X-ray imaging systems or via PACS.
- Expanded Color LUT
- Color Uniformity Correction
- Digital Uniformity Enhancement
- Auto Luminance Stabilizer (ALS)
- Self Calibration
- PerfectLum
- Dynamic Scaling
- Adjustable Stands
- Front Sensor
- Ambient Sensor
- Present Sensor
- Fanless Design
- DDC/CI
- Serial RS232 Remote Control
- Product Quality Report
Type |
IPS Monochrome with LED backlight |
Resolution |
1280 (H) x 1024 (V) |
Active Screen Size (inch) |
19 |
Display Area (mm) |
376.32 (H) x 301.06 (V) |
Pixel Pitch (mm) |
0.294 (H) x 0.294 (V) |
Viewing Angle (degree) |
170 (H) / 170 (V) |
Response time (time) |
30 (on/off) |
Brightness (cd/m2) |
1400 (typical) |
Contrast Ratio |
1000:1 (typical) |
Color Gamut CIE 1931 (Coverage/ Size) |
|
Display Colors |
256 (8 bit) |
