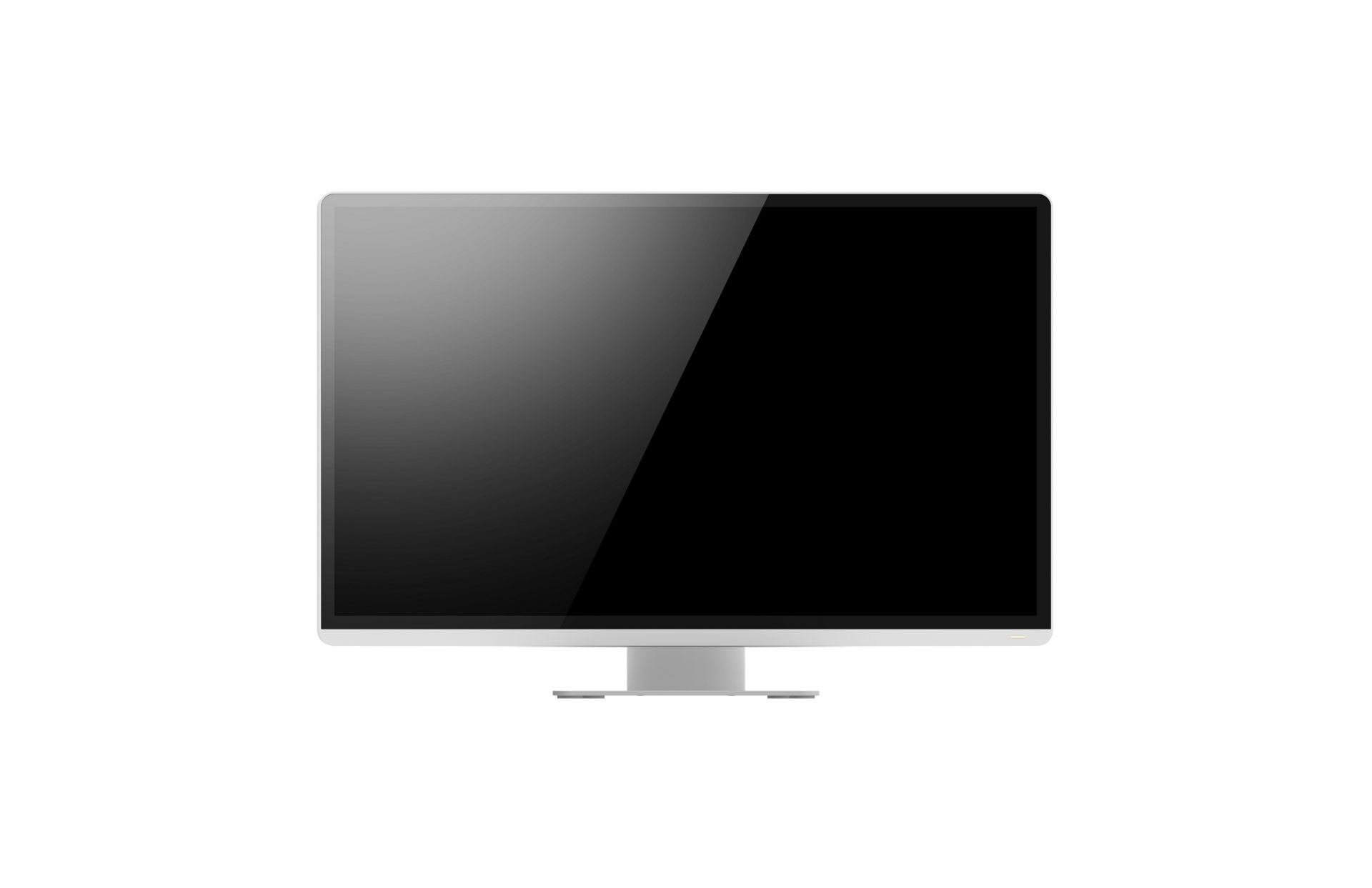

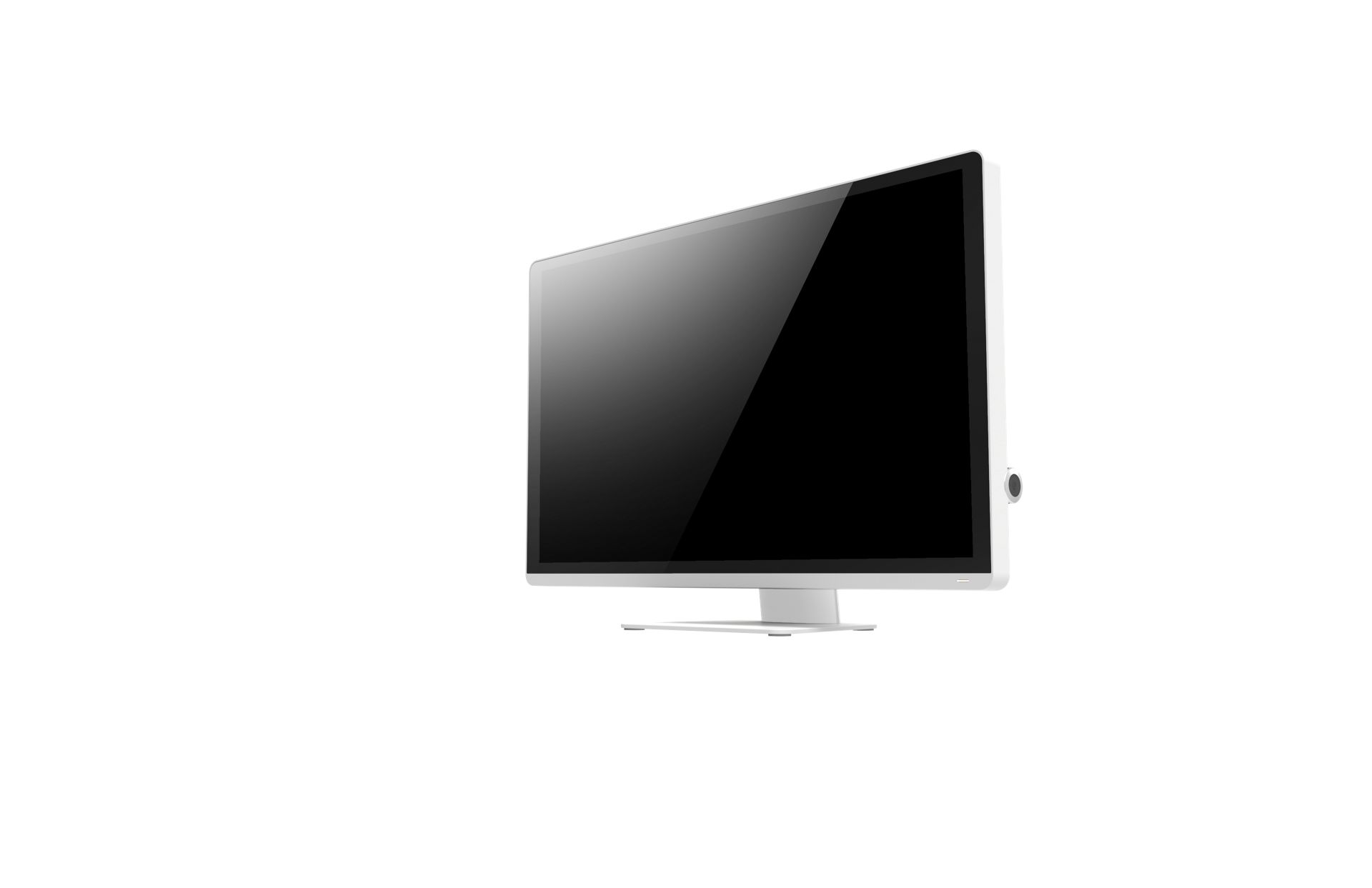

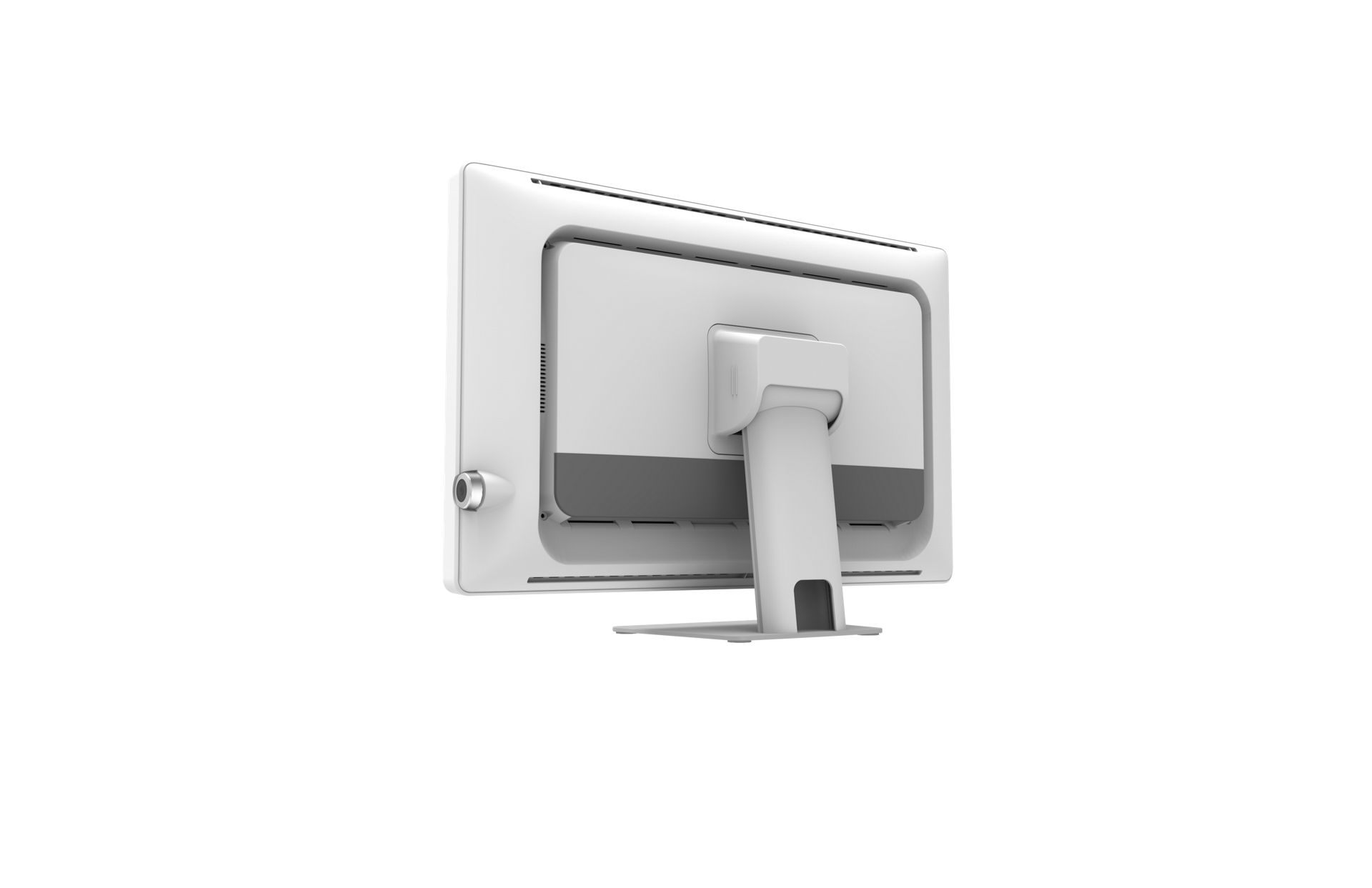

21.5” ST-21612-TP
The ST-21612-TP is a 21.5" P-CAP Display designed to fit the needs of today's surgical suite and interventional lab environments. Featuring a Full HD (1920x1080) and True Flat viewing area, the ST-21612-TP delivers excellent UI visualization. The expanded viewing area is ideally suited for labs performing charting and scheduling activities.
Designed for near patient use, the ST-21612-TP features essential surgical ready attributes; IP rated, fan free, suspension arm mounting, and cable cover. When used in the surgical field, the ST-21612-TP functions beneath a sterile drape or surgical gloves. The ST-21612-TP is rugged, easy to integrate and simplifies installation.
- cTUVus(60601 Ed3.1), CB(60601 Ed3.1), CE, FCC-B
- Flexible UI control using USB or RS-232
- IPX rated to improve disinfection
- Impact Shield protects against unintended contact
- Flat Front Surface improves disinfection
- Optional 5V power to simplify installation
- Optional cable cover to improve disinfection
Type
|
AHVA
|
Resolution
|
1920 (H) x 1080 (V)
|
Active Screen Size (inch)
|
21.5
|
Display Area (mm)
|
476.06 (H) x 267.79 (V)
|
Pixel Pitch (mm)
|
0.248 (H) x 0.248 (V)
|
Viewing Angle (degree)
|
178 (H) / 178 (V)
|
Response time (time)
|
22 on/off (Typ.)
|
Brightness (cd/m2)
|
350 (typ.)
|
Contrast Ratio
|
1000:1 (typ.)
|
Color Gamut
|
|
Display Colors
|
16.7 million
|
